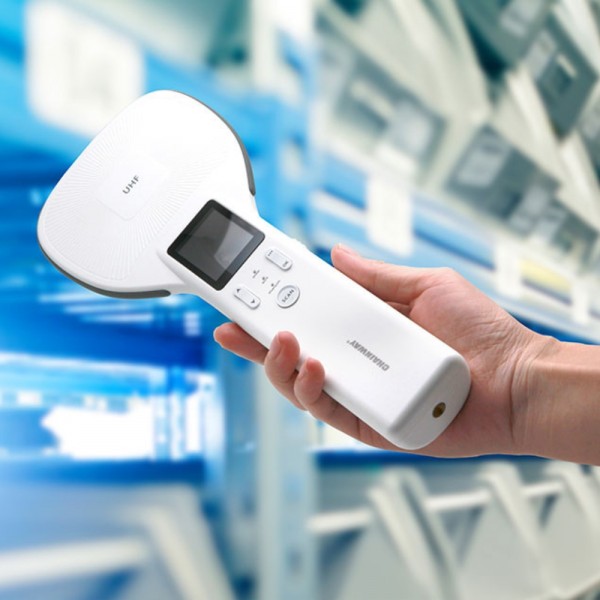

Chainway R2 Bluetooth RFID Reader
Chainway R2 is a handheld bluetooth reader with superior RFID performance. Integrated with Impinj E710, it enables read distance of 31m outdoors, and can store up to 50,000 tags. It supports optional barcode scanning, and allows flexible connectivity with any smart device via Bluetooth for data transmission with ease. The RFID reader can complete tasks in inventory management, asset management, etc.
| Device | |
| Memory of device | 50.000 tags |
| Environment | Operating Temperature -20°C to +5° C. Storage Temperature -40°C to +70°C. |
| Device dimension | 282 x 117.5 x 32mm/ Weight 334 gr (with battery) |
| Additional device features | Android / IOS. Display 1.77inch, 128 x 160. MCU Cortex-M3 72MHz. Removable battery 5200mAh. PWR button (side), up, down, return, ok, SCAN button (front). Buzzer.Interface Type-C. 2D Imager Scanner SE2707. Engine CM710-1 module based on Impinj E710. Antenna Linear Polarized antenna (4dBi). Read Rate 900+ tags/sec. Standby over 70 hours (keeping bluetooth connected). Continuous use for up to 6 hours (UHF reading). Charging time for 3-4 hours (with standard adaptor and USB cable). |
| Frequency | 920-925MHz/902-928MHz/865-868MHz |
| File | Size | Download |
|---|---|---|
| chainway-r2-bluetooth-rfid-reader-datasheet.pdf | 631.96KB | Download |
- Stock: In Stock
